Double Twisted Hexagonal Wire Mesh With Galfan Wire For Gabion Boxes / Cages

Name: Double Twisted Hexagonal Wire Mesh With Galfan Wire For Gabion Boxes Cages
Brand: Konson
Price: 1 USD

Place of Origin : Jiangsu, China (Mainland)

Brand Name : Konson

Certification : CE, ISO9001, SGS, ASTMA, EN, BS standard.

Model Number : KS-Gabion

MOQ : 500 Square Meter/Square Meters or as your request

Price : Discuss in mail

Packaging Details : Flat bundle,50 sets/bundle,binding with steel strape or strands,some rolls. Customer's suggestions a

Delivery Time : About 15 days after deposit,according to the quantity.

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,or as your request

Supply Ability : 5,000 Square Meter/Square Meters per Day or as your request

Port : Shanghai port

Type : twisted hexagonal wire mesh

Material : Galvanized Iron Wire

Application : Gabions

Hole Shape : Hexagonal

Aperture : 50*70,60*80,80*100,80*120,100*120,100*150,120*150mm

Wire Gauge : 2.0-5.0mm

Selvedge wire diameter : 2.0-5.0mm

Lacing /tie wire : 2.2mm

Feature : Strong and Durable

Zinc coating : 245-290g/m2

Flood bank or guiding : Bank Preventing of rock

Guarantee : Life-time

Quality : Superb

Contact Now

Double Twisted Hexagonal Wire Mesh With Galfan Wire For Gabion Boxes

Galfan galvanized Hexagonal Wire Mesh
Gabions is made of double twisted hexagonal woven steel wire mesh, as per ASTM A975-97
Gabions are filled with stones at the project site to form flexible, permeable, monolithic structures such as retaining walls, channel linings, and weirs for erosion control projects. The steel wire used in the manufacture of the gabion is heavily
Galfan (zinc-5% aluminum-mischmetal [Zn-5 Al-MM] alloy) coated soft temper steel. A PVC coating is then applied to provide additional protection for use in polluted, contaminated or aggressive environments: in salt, fresh water, acid soil or wherever the risk of corrosion is present. The PVC coating has a nominal thickness of 0.02 in. (0.50 mm).
The gabion is divided into cells by diaphragms positioned at approximately 3 ft (0.9 m) centers. To reinforce the structure, all mesh panel edges are selvedged with a wire having a greater diameter.

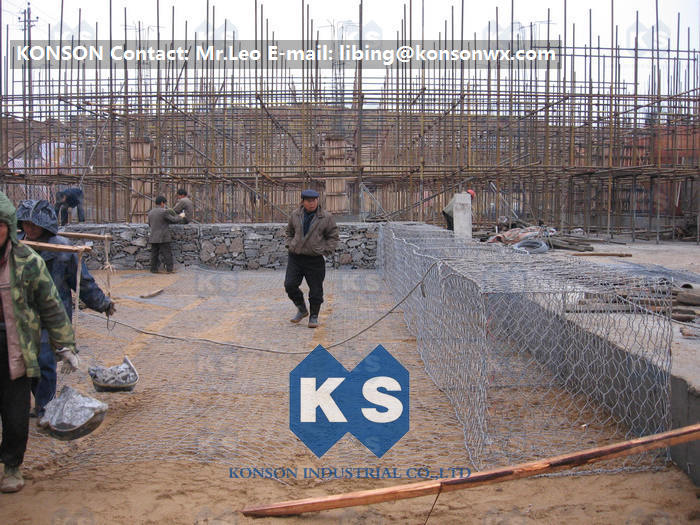

Engineering projects:

Double Twisted Hexagonal Wire Mesh With Galfan Wire For Gabion Boxes / Cages

Hexagonal Wire Netting/ Hexagonal Wire Mesh/ Gabion Boxes/ Gabion Baskets/ Stone Cages/ Welded Wire Mesh.

Applications:

Control and guide of water or flood
Preventing of rock breaking
Rock fall protection
Water and soil protection
Bridge protection
Strengthening structure of soil
Protection engineering of seaside area
Port project
Keep off dust wall

Roadway protection.

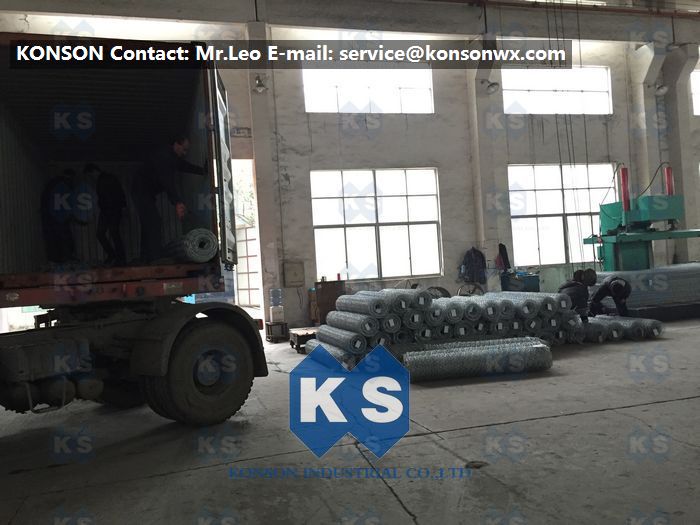

KONSON Workshop:

Double Twisted Hexagonal Wire Mesh With Galfan Wire For Gabion Boxes / Cages
